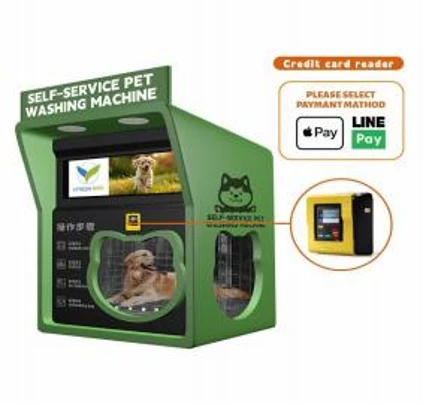

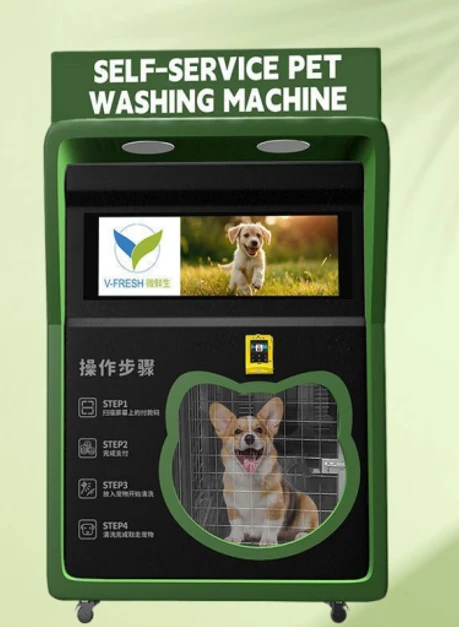

Pet Washing Automatic Vending Machine
Self-service pet washing machines offer a convenient solution for pet cleaning. Equipped with an 18.5-inch touchscreen, these units feature a variety of washing and drying functions, support 4G and Wi-Fi connectivity, and include built-in safety protection systems. Designed specifically for commercial self-service environments, they are ideal for use in pet shops, residential communities, and various other pet care facilities.
Product Introduction
Products Description
Product Name: Self-Service Intelligent Pet Washing Machine
Product Type: Intelligent self-service pet cleaning equipment
Primary Purpose: Provides self-service washing, rinsing, drying, and related grooming services for pets.
Equipment Features: Equipped with a touchscreen display, multiple cleaning and heating modules, a blower, a camera, and safety protection features.
Equipment Specifications
|
Item |
Specification |
|---|---|
|
Length |
1 m |
|
Width |
1.2 m |
|
Height |
1.8 m |
|
Machine Weight |
380 kg |
|
Rated Voltage |
AC 220 V |
|
Rated Frequency |
50 Hz |
|
Standby Power |
30 W |
|
Maximum Operating Power |
6,000 W |
|
Maximum Current |
27.5 A |
|
Rated Current |
20 A |
|
Rated Power |
5,500 W |
|
Connectivity |
4G, Wi-Fi |
|
Display |
18.5-inch Touchscreen |
|
Screen Resolution |
1920 × 1080 |
|
Screen Type |
IPS TFT LCD Capacitive Touchscreen |
Main Functions and Components
|
Functional Module |
Configuration / Function |
|---|---|
|
Display and Operation |
18.5-inch display with capacitive touchscreen |
|
Network Connectivity |
4G and Wi-Fi |
|
Lighting and Monitoring |
External lighting and camera |
|
Safety Protection |
Magnetic door lock, emergency stop switch, and door-closed detection |
|
Washing System |
Dual solenoid valves, pressurized spray system, and three washing liquid injection channels |
|
Heating System |
Air-intake heating module and water heating module |
|
Drying System |
Centrifugal fan |
|
Temperature Protection |
Hot water over-temperature protection and hot air outlet over-temperature protection |
|
Dry-Run Protection |
No-water dry-run protection |
|
Fault Handling |
Equipment abnormality alerts and fault recovery memory function |
|
Disinfection |
Ultraviolet and ozone disinfection (one wash and one disinfection cycle) |
|
Audio Alerts |
Speaker |
Safety Protection Functions
According to the product image, the pet washing machine includes the following safety and protection features:
Emergency Stop: Equipped with an emergency stop switch.
Door Safety Detection: Includes door-closed detection and a magnetic door lock.
Temperature Protection: Provides hot water and hot air outlet over-temperature protection.
Dry-Run Protection: Includes protection against operation without sufficient water.
Fault Alerts: Detects and indicates equipment abnormalities.
Fault Recovery: Includes an emergency-stop memory and recovery function.
Disinfection System: Equipped with ultraviolet and ozone disinfection components.
