Smart Ice-Making Vending Machine
smart ice vending project combines IoT technology with new retail to upgrade instant retail. It targets demand for ice and chilled drinks in office buildings, industrial parks, supermarkets, dormitories, factories, scenic areas, and other high-traffic locations. Smart ice vending terminals can operate 24/7 as convenient self-service ice stations. The solution addresses the time and effort required for traditional ice purchasing, limited supply hours, nighttime shortages, storage and freshness challenges, and insufficient chilled-drink supply—enabling convenient self-service purchases of ice and ready-to-drink beverages.
Product Introduction
Smart Ice-Making Vending Machine

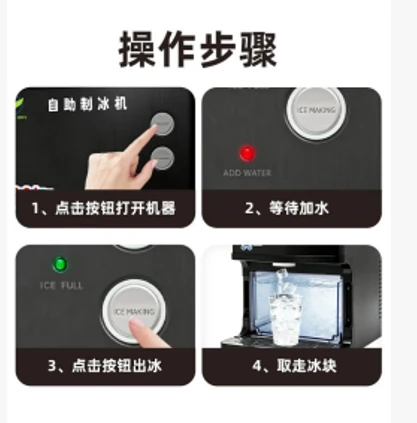

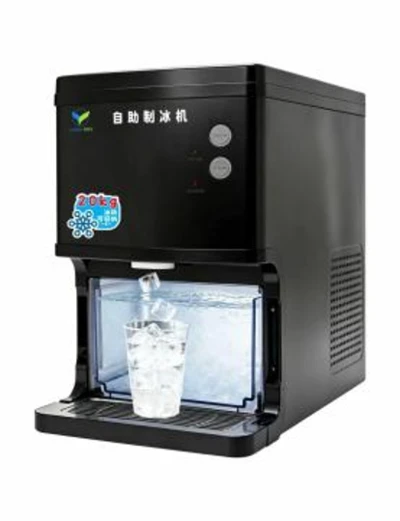

WX-F55-3 Push-Button Ice Maker
Model: WX-F55-3
Dimensions (H × W × D): 460 × 328 × 480 mm
Net Weight: approx. 16 kg
Rated Voltage: 100–120 V / 220–240 V; 60/50 Hz
2.8 A / 1.1 A; 195 W / 150 W
Payment: Card reader supported; banknotes and coins can be customized, with
or without change
Key Features:
1. Fast ice making: 6-minute cycle with a high-efficiency compressor; up to 20 kg/day.
2. Low noise: Multiple noise-reduction components, including an ultra-quiet exhaust fan.
3. One-touch ice dispensing: Easy ice access while helping reduce cross- contamination and secondary contamination.
4. Self-cleaning: Automatic cleaning for periodic internal cleaning.
5. Water supply: Manual filling, bottled water, or direct drinking water.
6. Chewable ice: Soft, slow-melting ice with a distinctive texture, ideal for ice cocktails, soda, and other drinks.
Ice-making Capacity: 20 kg/day; 2.8 L water tank and 1.5 kg removable ice basket for continuous operation.

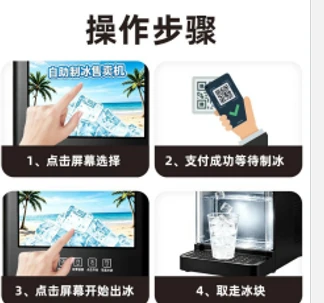

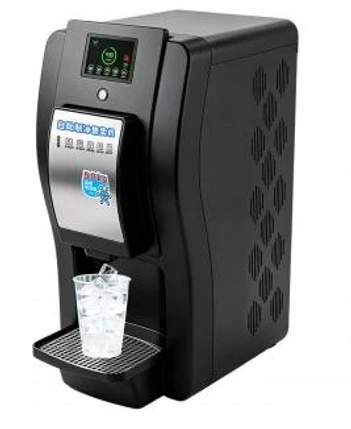

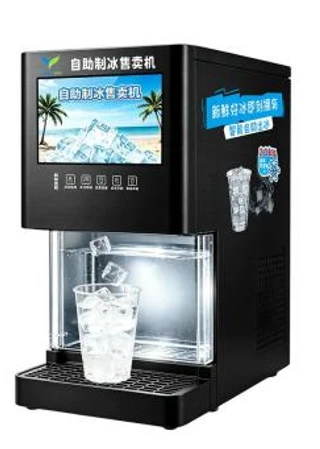

WX-F55-3 Countertop Self-Service Ice Maker
Model: WX-F55-3
Dimensions (H × W × D): 460 × 328 × 480 mm
Net Weight: approx. 16 kg
Rated Voltage: 100–120 V / 220–240 V; 60/50 Hz
2.8 A / 1.1 A; 195 W / 150 W
Screen: 10. 1-inch touchscreen selection & advertising display
Payment: Card reader supported; banknotes and coins can be customized, with or
without change
Key Features:
1. Fast ice making: 6-minute cycle with a high-efficiency compressor; up to 20 kg/day.
2. Low noise: Multiple noise-reduction components, including an ultra-quiet exhaust fan.
3. One-touch ice dispensing: Easy ice access while helping reduce cross- contamination and secondary contamination.
4. Self-cleaning: Automatic cleaning for periodic internal cleaning.
5. Water supply: Manual filling, bottled water, or direct drinking water.
6. Chewable ice: Soft, slow-melting ice with a distinctive texture, ideal for ice cocktails, soda, and other drinks.
Ice-making Capacity: 20 kg/day; 2.8 L water tank and 1.5 kg removable ice basket for
continuous operation.
WX.F55.5 Countertop Self.Service Ice Maker
Model: WX-F55-5
Dimensions (H × W × D): 460 × 328 × 480 mm
Net Weight: approx. 30 kg
Rated Voltage: 100–120 V / 220–240 V; 60/50 Hz; 1.9 A; 270 W
Screen: 4.3-inch touchscreen selection & advertising display
Payment: Card reader supported; banknotes and coins can be customized, with or
without change
Key Features:
1. Fast ice making: 6-minute cycle with a high-efficiency compressor; up to 50 kg/day.
2. Low noise: Multiple noise-reduction components, including an ultra-quiet exhaust fan.
3. One-touch ice dispensing: Easy ice access while helping reduce cross-contamination and secondary contamination.
4. Self-cleaning: Automatic cleaning for periodic internal cleaning.
5. Water supply: Bottled water or direct drinking water.
6. Four dispensing modes: 50 g / 100 g / 150 g / continuous dispensing.
7. Soft, chewable diamond ice, ideal for coffee, cocktails, smoothies, and other cold drinks.
Ice-making Capacity: 50 kg/day; 3.5 kg ice-bin storage; suitable for continuous operation

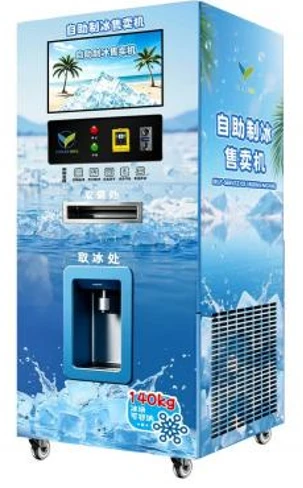

WX-F55-6 Upright Ice Vending Machine
Model: WX-F55-6
Dimensions (H × W × D): 2250 × 980 × 1200 mm
Net Weight: approx. 320 kg
Rated Voltage: 220–240 V / 50 Hz; Total Input Power: 2.62 kW; Ice-cutting gearbox / water
pump input: 0.55 kW; Air-cooled condenser: 2.64 kW
Screen: 21.5-inch touchscreen selection & advertising display
Payment: Card reader supported; banknotes and coins can be customized, with or without change
Key Features:
1. Ice-making cycle: 18–20 min/cycle; high-efficiency compressor; up to 140 kg/day.
2. Low noise: Multiple noise-reduction components, including an ultra-quiet exhaust fan.
3. One-touch ice dispensing: Easy ice access while helping reduce cross-contamination and secondary contamination.
4. Self-cleaning: Automatic cleaning for periodic internal cleaning.
5. Water supply: Bottled water or direct drinking water.
6. Four dispensing modes: 3 kg / 5 kg / 10 kg / continuous dispensing.
Ice-making Capacity: 140 kg/day; ice tray: 182 pcs (13 × 14); ice cube size: 22 × 22 × 22 mm;
single cube weight: 8–9 g.
Cooling: Air-cooled, flowing-water cube ice; cooling capacity: 8 kW; evaporation temperature: −15°C; condensing temperature: 40°C; refrigerant: R410A.
WX-F55-10 Upright Ice Vending Machine
Model: WX-F55-10
Dimensions (H × W × D): 2357 × 1300 × 1285 mm
Net Weight: approx. 400 kg
Rated Voltage: 220–240 V / 50 Hz; Total Input Power: 2.62 kW; Ice-cutting gearbox / water
pump input: 0.55 kW; Air-cooled condenser: 2.64 kW
Screen: 21.5-inch touchscreen selection & advertising display
Payment: Card reader supported; banknotes and coins can be customized, with or without change
Key Features:
1. Ice-making cycle: 18–20 min/cycle; high-efficiency compressor; up to 400 kg/day.
2. Low noise: Multiple noise-reduction components, including an ultra-quiet exhaust fan.
3. One-touch ice dispensing: Easy ice access while helping reduce cross-contamination and secondary contamination.
4. Self-cleaning: Automatic cleaning for periodic internal cleaning.
5. Water supply: Bottled water or direct drinking water.
6. Four dispensing modes: 3 kg / 5 kg / 10 kg / continuous dispensing.
Ice-making Capacity: 400 kg/day; ice tray: 396 pcs (11 × 18 × 2); ice cube size: 22 × 22 × 22 mm; single cube weight: 8–9 g.
Cooling: Air-cooled, flowing-water cube ice; cooling capacity: 8 kW; evaporation temperature: −15°C; condensing temperature: 40°C; refrigerant: R410A.
WX-F55-11 Upright Ice Vending Machine
odel: WX-F55-11
Dimensions (H × W × D): 2357 × 1300 × 1285 mm
Net Weight: approx. 420 kg
Rated Voltage: 220–240 V / 50 Hz; Total Input Power: 2.62 kW; Ice-cutting gearbox / water
pump input: 0.55 kW; Air-cooled condenser: 2.64 kW
Screen: 21.5-inch touchscreen selection & advertising display
Payment: Card reader supported; banknotes and coins can be customized, with or without change
Key Features:
1. Ice-making cycle: 18–20 min/cycle; high-efficiency compressor; up to 450 kg/day.
2. Low noise: Multiple noise-reduction components, including an ultra-quiet exhaust fan.
3. One-touch ice dispensing: Easy ice access while helping reduce cross-contamination and secondary contamination.
4. Self-cleaning: Automatic cleaning for periodic internal cleaning.
5. Water supply: Bottled water or direct drinking water.
6. Four dispensing modes: 3 kg / 5 kg / 10 kg / continuous dispensing.
Ice-making Capacity: 450 kg/day; ice tray: 540 pcs (15 × 18 × 2); ice cube size: 22 × 22 × 22 mm; single cube weight: 8–9 g.
Cooling: Air-cooled, flowing-water cube ice; cooling capacity: 8 kW; evaporation temperature: −15°C; condensing temperature: 40°C; refrigerant: R410A.

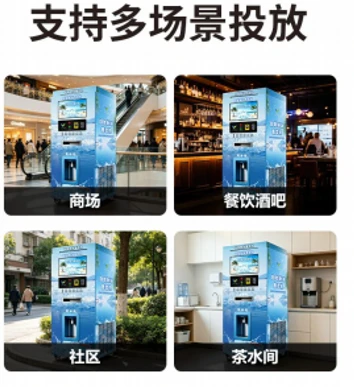

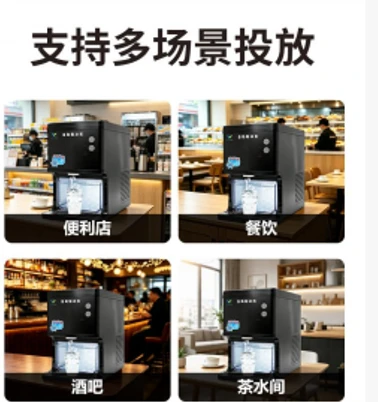

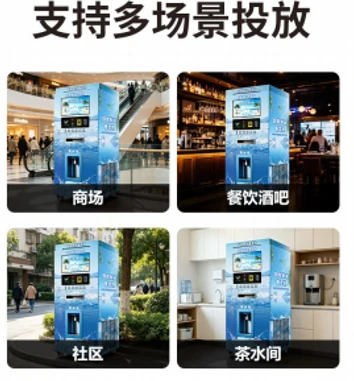

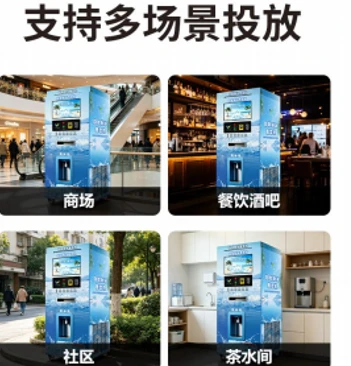

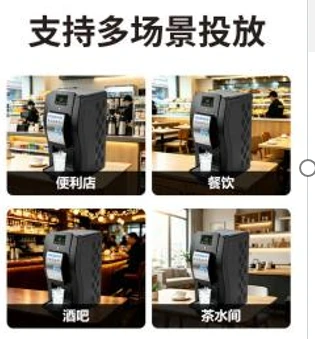

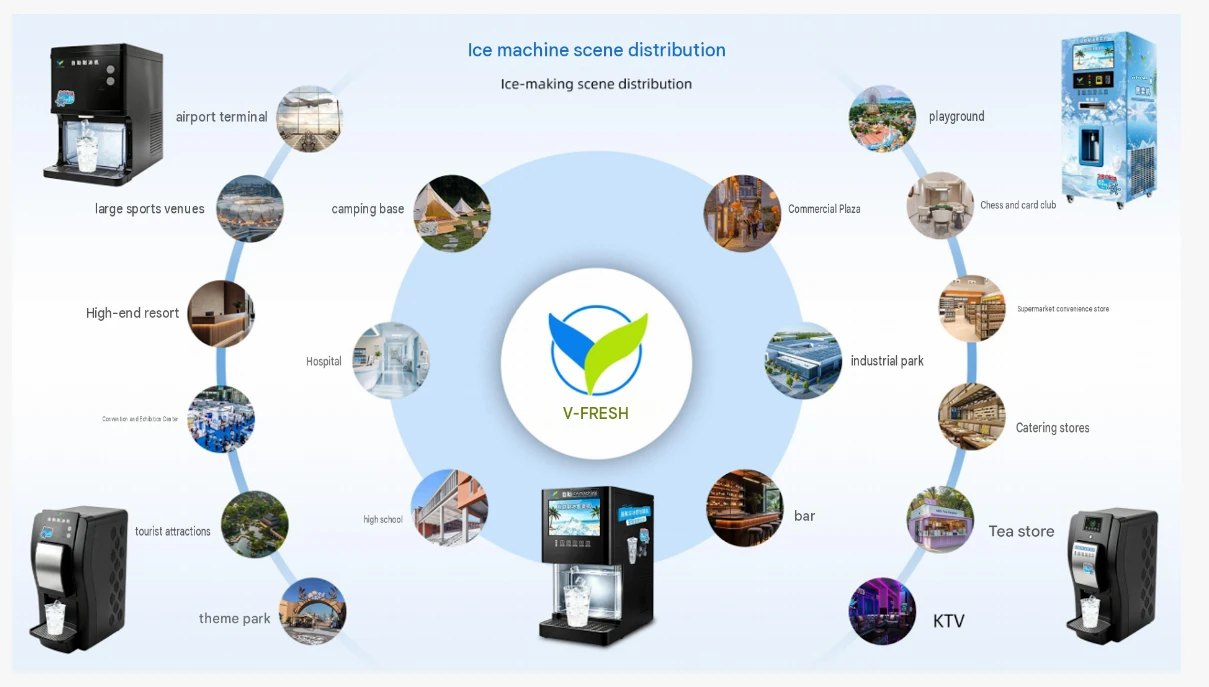

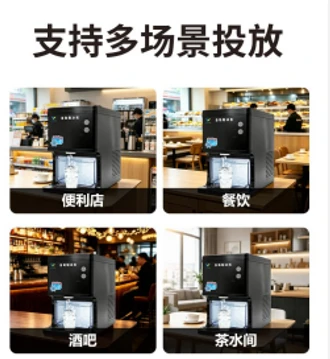

Smart Ice-Making Vending Machines (Deployment Scenarios)
